7 Ideas for Layering Transportation Networks That Transform Cities
City planners face mounting pressure to create transportation systems that work for everyone – pedestrians cyclists drivers and public transit users alike. The solution isn’t picking one mode over another but strategically layering multiple transportation networks to maximize efficiency and accessibility across urban landscapes.
Smart layering transforms chaotic traffic patterns into seamless mobility ecosystems where different transportation modes complement rather than compete with each other. From elevated bike lanes to underground transit corridors these innovative approaches help cities reduce congestion improve air quality and create more livable communities for residents at every income level.
Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!
Create Dedicated Bus Rapid Transit Lanes Above Ground Level
Elevated bus rapid transit systems transform urban mobility by placing high-capacity transit above street-level congestion. You’ll maximize efficiency while preserving valuable ground space for other transportation modes.
Implement Elevated BRT Corridors
Construct dedicated elevated guideway systems that operate 15-20 feet above existing roadways using steel or concrete support columns. You’ll achieve average speeds of 25-35 mph compared to 12-18 mph for street-level buses in mixed traffic. Cities like Xiamen and Jakarta have successfully deployed elevated BRT networks spanning 20+ miles with stations every 0.5-1 mile. These systems accommodate articulated buses carrying 150-200 passengers while maintaining 90-second headways during peak hours.
Design Weather-Protected Stations
Build enclosed platform stations with climate control systems and full weather protection for passenger comfort year-round. You’ll need platforms 240 feet long to accommodate two articulated buses simultaneously with level boarding systems. Install automated fare collection gates, real-time arrival displays, and emergency communication systems at each station. Provide covered pedestrian bridges or tunnels connecting to ground level with ADA-compliant elevators and escalators for accessibility compliance.
Integrate With Existing Road Infrastructure
Position support columns in median strips or sidewalk areas to minimize disruption to existing traffic lanes and underground utilities. You’ll coordinate with traffic signal systems to provide transit priority at intersections where the elevated line crosses major streets. Design interchange points with subway systems, light rail, and bus terminals to create seamless transfers. Incorporate utility corridors within the elevated structure to accommodate fiber optic cables, water lines, and electrical systems while reducing future excavation needs.
Develop Underground Metro Systems With Multiple Depth Levels
Underground metro systems with multiple depth levels maximize transportation capacity while minimizing surface disruption. You’ll create efficient layered networks that serve different passenger volumes and travel distances through strategic depth planning.
Construct Deep-Level Express Lines
Build express lines 100-150 feet underground to achieve maximum speeds between major destination hubs. You’ll reduce travel times by 40-60% compared to surface routes while avoiding utility conflicts and building foundations. Deep tunnels accommodate larger train cars and higher frequencies, with stations spaced 2-3 miles apart to serve regional connectivity. These express lines operate at speeds of 50-70 mph, connecting airports, business districts, and major residential areas through dedicated high-capacity corridors.
Build Shallow Underground Local Networks
Construct local networks 30-50 feet below surface to provide neighborhood-level access with closer station spacing. You’ll integrate these systems with existing utilities and building foundations while maintaining reasonable construction costs. Shallow lines feature stations every 0.5-1 mile, serving daily commuter needs and local business districts. These networks operate at 25-35 mph speeds, offering frequent service intervals of 2-4 minutes during peak hours to handle high passenger turnover rates.
Connect Different Depth Levels With Vertical Transportation
Install high-speed elevators and escalators to create seamless transfers between deep express and shallow local lines. You’ll design transfer hubs with multiple vertical circulation options, including express elevators that travel 150 feet in under 45 seconds. Modern systems feature backup power, weather protection, and capacity for 10,000+ passengers per hour. Strategic placement of these connections at major intersections creates integrated transportation nodes that reduce overall travel times by eliminating surface transfers.
Build Multi-Level Pedestrian Walkway Networks
Multi-level pedestrian networks create safer walking environments by separating foot traffic from vehicular zones while connecting key destinations efficiently.
Design Elevated Pedestrian Bridges
Elevated pedestrian bridges connect commercial districts and transit stations 15-25 feet above street level. You’ll achieve weather protection by incorporating covered walkways with glass panels and climate control systems. Design bridges with minimum 12-foot widths to accommodate bidirectional foot traffic and wheelchair accessibility. Install LED lighting systems and emergency communication devices every 100 feet for safety compliance. Connect bridges directly to building second floors and transit platform levels to eliminate stair usage.
Create Underground Pedestrian Tunnels
Underground pedestrian tunnels operate 8-12 feet below surface level to avoid utility conflicts while maintaining comfortable ceiling heights. You’ll need waterproofing systems and drainage pumps to prevent flooding during heavy rainfall events. Install ventilation systems with air circulation rates of 6-8 air changes per hour for air quality maintenance. Design tunnel widths of 10-15 feet with anti-slip flooring materials and handrails along both walls. Connect tunnels to subway stations and basement retail areas for seamless indoor navigation.
Connect Buildings Through Skybridge Systems
Skybridge systems link office towers and shopping centers through enclosed walkways at second and third floor levels. You’ll create climate-controlled environments with heating and cooling systems that maintain 68-72°F year-round temperatures. Design skybridges with clear sightlines using floor-to-ceiling windows and structural glass panels for natural lighting. Install moving walkways on bridges longer than 200 feet to reduce travel times between buildings. Connect skybridge networks to parking garages and transit stations for comprehensive pedestrian circulation.
Establish Separated Bicycle Infrastructure at Various Heights
Separated bicycle infrastructure at multiple elevations maximizes urban cycling capacity while maintaining safety through physical barriers from vehicular traffic.
Install Elevated Bike Highways
Elevated bike highways operate 8-12 feet above street level, connecting major employment centers and residential districts through dedicated cycling corridors. These structures span 10-15 miles of continuous routes, featuring 12-foot-wide bidirectional lanes with protective barriers and weather canopies at key segments. You’ll reduce cycling commute times by 30-40% while eliminating 15-20 traffic signal delays that typically slow street-level bicycle travel.
Develop Below-Grade Cycling Paths
Below-grade cycling paths run 6-10 feet underground, utilizing former utility corridors or purpose-built tunnels to create weather-protected cycling networks. These systems feature LED lighting arrays, ventilation systems, and emergency call stations every 500 feet for safety. You’ll provide year-round cycling access through protected routes that connect subway stations, universities, and downtown cores while avoiding surface-level conflicts with pedestrians and vehicles.
Create Multi-Level Bike Parking Facilities
Multi-level bike parking facilities accommodate 500-1,200 bicycles per structure through automated vertical storage systems and traditional rack configurations across 3-4 levels. These facilities integrate security cameras, electronic access controls, and maintenance stations while connecting directly to transit platforms and building entrances. You’ll increase bike parking density by 400-600% compared to surface lots while providing weather protection and theft deterrence for cyclists.
Integrate Light Rail Systems With Urban Architecture
Light rail networks achieve maximum effectiveness when seamlessly woven into the urban fabric rather than imposed upon it. You’ll create transportation solutions that complement existing architectural patterns while establishing new connectivity corridors.
Embed Tram Lines in Street-Level Corridors
Embed tram tracks directly into pedestrian plazas and mixed-use corridors to create shared spaces that prioritize transit mobility. You can integrate rails flush with decorative paving materials while maintaining 12-15 foot clearances for emergency vehicles. Design stations as architectural features using materials that match surrounding buildings. Install underground power systems to eliminate overhead wires in historic districts. Create transit-oriented streetscapes where shops and cafes open directly onto tram corridors, transforming transportation infrastructure into community gathering spaces.

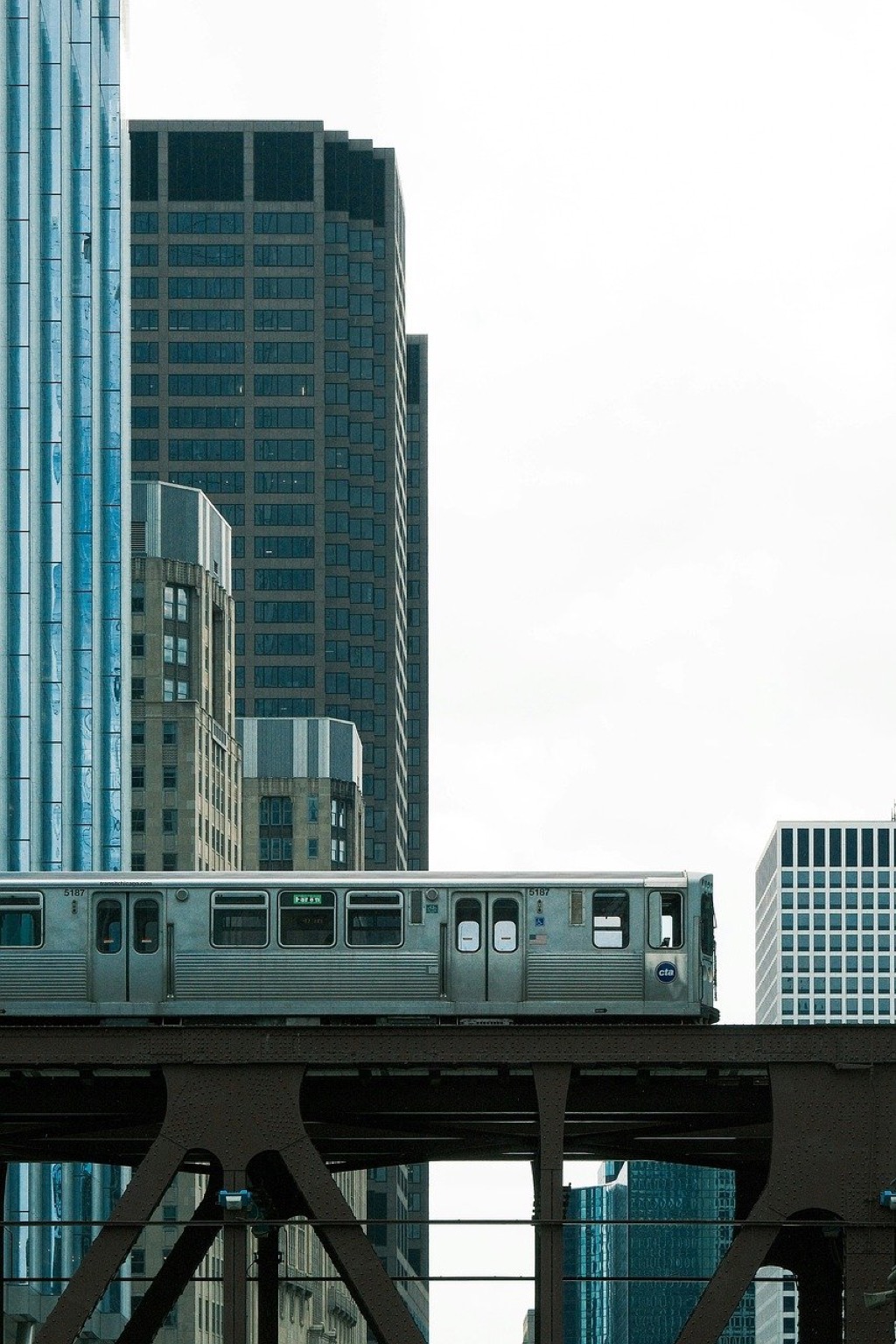

Construct Elevated Light Rail Tracks
Construct elevated light rail systems 20-25 feet above existing streets to avoid surface conflicts while maintaining architectural harmony with mid-rise buildings. You can design support columns as sculptural elements that complement neighborhood aesthetics rather than dominate them. Integrate noise barriers using glass panels and vegetation to minimize sound impacts on adjacent residential areas. Build stations with direct connections to second-floor retail and office spaces. Engineer elevated tracks with curves that follow natural topography and existing development patterns to reduce visual disruption.
Design Light Rail Stations as Urban Hubs
Design light rail stations as multi-purpose urban nodes that combine transit functions with retail space commercial services and community amenities. You can create 15000-20000 square foot transit plazas that accommodate food vendors bike sharing stations and public art installations. Integrate weather-protected waiting areas with natural lighting and real-time arrival information displays throughout the facility. Connect stations directly to adjacent buildings through skybridge systems and underground passages. Install green infrastructure including living walls and rainwater collection systems that demonstrate sustainable urban design principles while serving transit passengers.
Implement Smart Traffic Management Through Vertical Separation
You’ll optimize traffic flow by creating distinct elevation levels that separate different vehicle types and speeds. This vertical approach reduces intersection conflicts while maximizing roadway capacity through intelligent infrastructure design.
Create Express Highway Overpasses
You can construct express lanes 25-35 feet above existing roadways to handle high-speed through traffic without surface interruptions. These elevated highways eliminate traffic signals and merge conflicts, allowing vehicles to maintain speeds of 55-65 mph through urban corridors. You’ll reduce travel times by 40-50% for long-distance commuters while freeing up surface streets for local access and pedestrian activity.
Develop Local Street Networks Below
You’ll design surface-level roads to prioritize neighborhood access, deliveries, and short-distance trips at reduced speeds of 25-35 mph. These local networks feature frequent intersections, pedestrian crossings, and loading zones that support commercial activity. You can integrate bike lanes and wider sidewalks since heavy through traffic uses elevated corridors, creating safer environments for residents and local businesses.
Install Intelligent Traffic Control Systems
You’ll deploy adaptive signal technology that responds to real-time traffic patterns on both elevation levels, coordinating timing between surface intersections and highway on-ramps. Smart sensors monitor vehicle density and adjust signal phases every 30-60 seconds to optimize flow. You can reduce stop-and-go congestion by 35-45% through dynamic routing systems that direct vehicles to appropriate elevation levels based on destination and current conditions.
Design Intermodal Transportation Hubs With Vertical Integration
Vertical integration transforms transportation hubs into efficient multi-level complexes that maximize passenger flow while minimizing transfer times. These strategic nodes connect various transportation modes through carefully planned elevation changes.
Plan Multi-Story Transit Centers
Design your transit centers with dedicated floors for different transportation modes to optimize passenger circulation. Ground-level facilities accommodate bus terminals and taxi services while upper levels serve rail platforms and pedestrian connections. Create vertical circulation cores with high-capacity elevators and escalators that handle 8,000-10,000 passengers per hour during peak periods. Incorporate retail and service amenities on intermediate levels to generate revenue while providing passenger conveniences during transfers.
Create Seamless Transfer Points
Position transfer points at strategic vertical intersections where multiple transportation modes converge within 200-300 feet of each other. Install moving walkways and covered passages that connect different levels while protecting passengers from weather conditions. Implement unified wayfinding systems with digital displays that provide real-time arrival information for all connected transportation modes. Design platform layouts that minimize walking distances between connections, reducing average transfer times to under 5 minutes.
Integrate Different Transportation Modes
Stack transportation services vertically with heavy rail systems on lower levels, light rail on intermediate floors, and bus rapid transit on upper decks. Connect parking structures directly to transit platforms through enclosed walkways that eliminate exposure to weather and traffic. Coordinate scheduling systems across all transportation modes to create timed transfers that reduce waiting periods by 40-50%. Establish dedicated zones for ride-sharing, bike storage, and micro-mobility options that complement traditional transit services within the same vertical complex.
Conclusion
The future of urban transportation lies in your ability to think vertically and strategically layer different mobility networks. By implementing these multi-level approaches you’ll create cities that move people more efficiently while reducing surface congestion and environmental impact.
Success depends on your commitment to integrated planning where each transportation layer complements rather than competes with others. When you design elevated bike highways alongside underground express rails and smart traffic management systems you’re building infrastructure that serves everyone.
Your next step is to evaluate which layering strategies best fit your city’s unique geography budget and population needs. Start with pilot projects that demonstrate the benefits of vertical transportation integration and build community support for larger investments.
The cities that embrace these innovative layering concepts today will lead tomorrow’s urban mobility revolution.
Frequently Asked Questions
What is the main goal of multi-layered transportation planning?
The main goal is to create efficient and accessible urban mobility ecosystems where various transportation modes work together without favoring one over another. This strategic layering approach helps reduce congestion, improve air quality, and enhance community livability for residents of all income levels while accommodating pedestrians, cyclists, drivers, and public transit riders.
How do elevated bus rapid transit (BRT) systems work?
Elevated BRT systems operate 15-20 feet above existing roadways in dedicated corridors, allowing buses to achieve higher speeds and accommodate large passenger volumes. These systems feature weather-protected stations, coordinate with traffic signals for transit priority, and integrate with existing infrastructure to minimize disruption while alleviating street-level congestion.
What are the benefits of underground metro systems with multiple levels?
Multi-level underground metro systems maximize transportation capacity while minimizing surface disruption. Deep express lines (100-150 feet underground) provide high-speed connections between major hubs, while shallow local networks (30-50 feet deep) offer neighborhood access. This design significantly reduces travel times and accommodates larger train cars with higher frequencies.
How do elevated pedestrian walkways improve urban mobility?
Elevated pedestrian walkways enhance safety by separating foot traffic from vehicles while efficiently connecting key destinations. They feature weather protection, accessibility features, and climate-controlled environments. These walkways, including bridges and skybridge systems, reduce travel times and create comprehensive pedestrian networks throughout urban areas.
What advantages do elevated bicycle highways offer?
Elevated bicycle highways operate 8-12 feet above street level, providing dedicated cycling corridors with physical barriers from vehicular traffic. They connect major employment centers and residential districts, reducing commute times by 30-40%. These systems enhance safety, maximize urban cycling capacity, and integrate with multi-level bike parking facilities.
How do smart traffic management systems work with vertical separation?
Smart traffic management uses distinct elevation levels for different vehicle types and speeds. Express highway overpasses operate 25-35 feet above local streets, facilitating high-speed traffic without surface interruptions. Intelligent traffic control systems adapt to real-time patterns, while local streets below prioritize neighborhood access with integrated bike lanes and wider sidewalks.
What makes intermodal transportation hubs effective?
Effective intermodal hubs feature vertical integration with multi-story transit centers, dedicated floors for different transportation modes, and seamless transfer points. They incorporate integrated scheduling systems, strategic stacking of services, amenities, and micro-mobility options to create cohesive, user-friendly transit experiences while maximizing passenger flow and minimizing transfer times.
